Operant Box for Auditory Tasks (OBAT)

June 2, 2017

Mariana de Araújo has shared the following regarding OBAT, an operant box designed for auditory tasks developed at the Edmond and Lily Safra International Institute of Neuroscience, Santos Dumont Institute, Macaiba, Brazil.

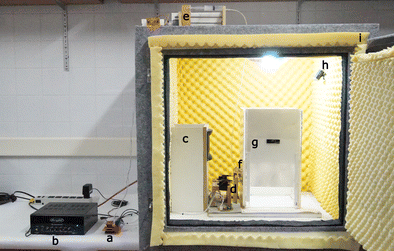

Fig. 1
Overview of the OBAT, inside the sound-attenuating chamber with the door open. External sources of heating were left outside the chamber: (a) Arduino Mega 2560 and shields and (b) the power amplifier. The modules controlling sound delivery, the response bars, and reward delivery can be seen in this lateral view: (c) speaker, (d) retractable bars, (e) reward delivery system, and (f) reward dispenser. The animal was kept inside the (g) Plexiglas chamber, and monitored by an (h) internal camera mounted on the wall of the (i) sound isolation chamber

OBAT is a low cost operant box designed to train small primates in auditory tasks. The device presents auditory stimuli via a MP3 player shield connected to an Arduino Mega 2560 through an intermediate, custom-made shield. It also controls two touch-sensitive bars and a reward delivery system. A Graphical User Interface allows the experimenter to easily set the parameters of the experimental sessions. All board schematics, source code, equipment specification and design are available at GitHub and at the publication. Despite its low cost, OBAT has a high temporal accuracy and reliably sends TTL signals to other equipment. Finally, the device was tested with one marmoset, showing that it can successfully be used to train these animals in an auditory two-choice task.


Ribeiro MW, Neto JFR, Morya E, Brasil FL, de Araújo MFP (2017) OBAT: An open-source and low- cost operant box for auditory discriminative tasksBehav Res Methods. doi: 10.3758/s13428-017-0906-6
